Description

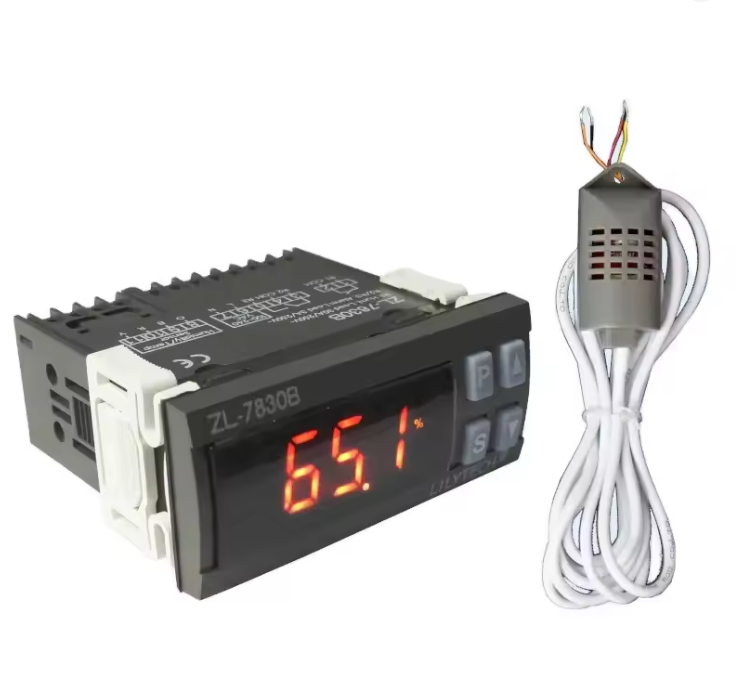

ZL-7830B Humidity Controller
Humidity control.
With optional sensor ZL-SHr05B, it is suitable for sausage or cheese depositing.
Humidifying or dehumidifying control
Humidity calibration
Warning and alarming output
Power supply: 100 ～ 240Vac, 50/60Hz
Input: Humidity sensor, wire length 2 meters
Sensor precision:
±3%/25℃ (ZL-SHr05A)
±2%/25℃ (ZL-SHr05B)
Setting range:0 ～ 100.0%RH
Resolution: 0.1%RH
Output:R1, 30A/250Vac. R2/R3, 3A/250Vac. The parameters are based on resistive load.
Working environment: -20 ～ 45℃;5 ～ 85% RH without dew
Case dimension: L78 x W34.5 x D71 (mm)
Drilling size: L 71 x W29 (mm)
Case materials: PC + ABS, fireproof
Protection level: IP65 (Front panel only)
